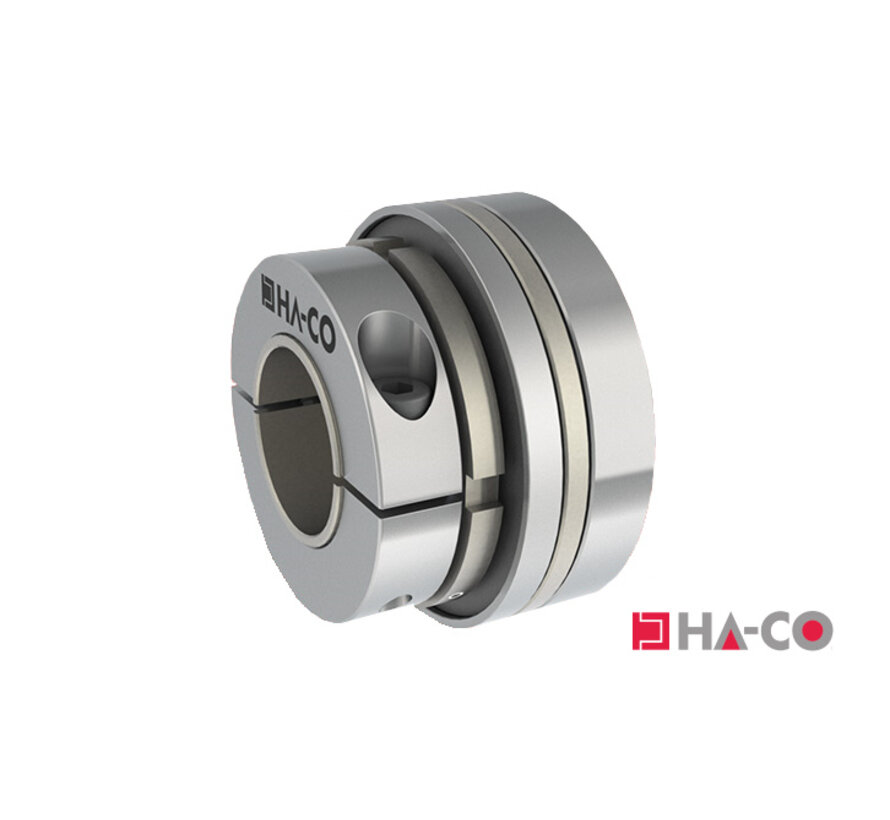

Indirect safety couplings FHW-F
Safety couplings FHW-F
The FHW-F clamping hub needs thanks to the easy installation and high reliability no processing on the shaft for keyways or similar.

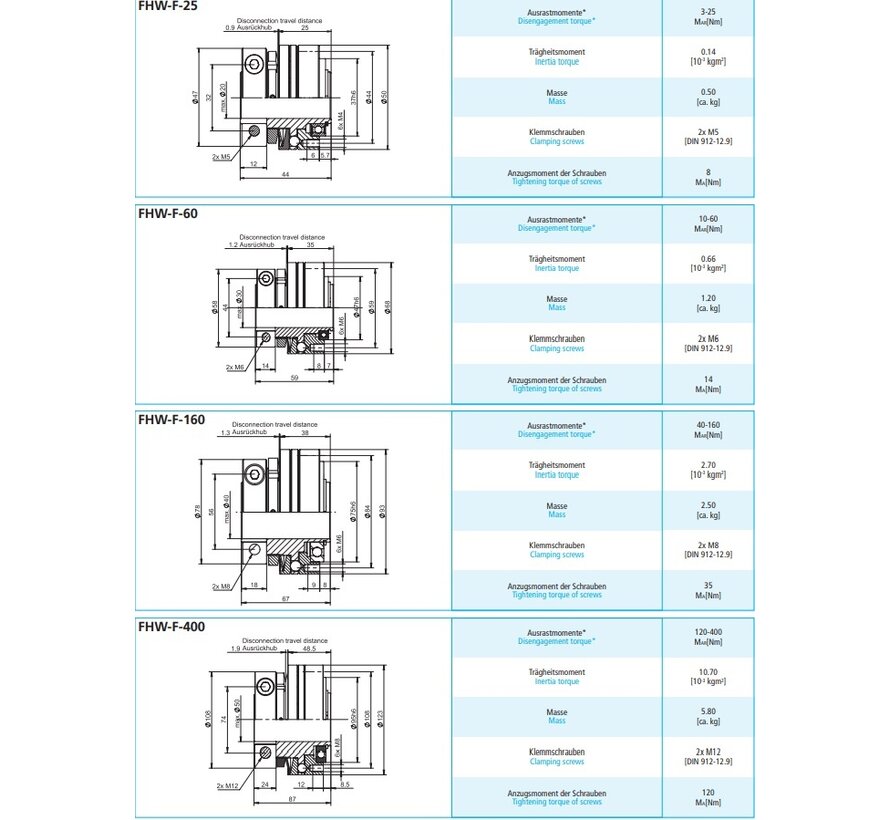

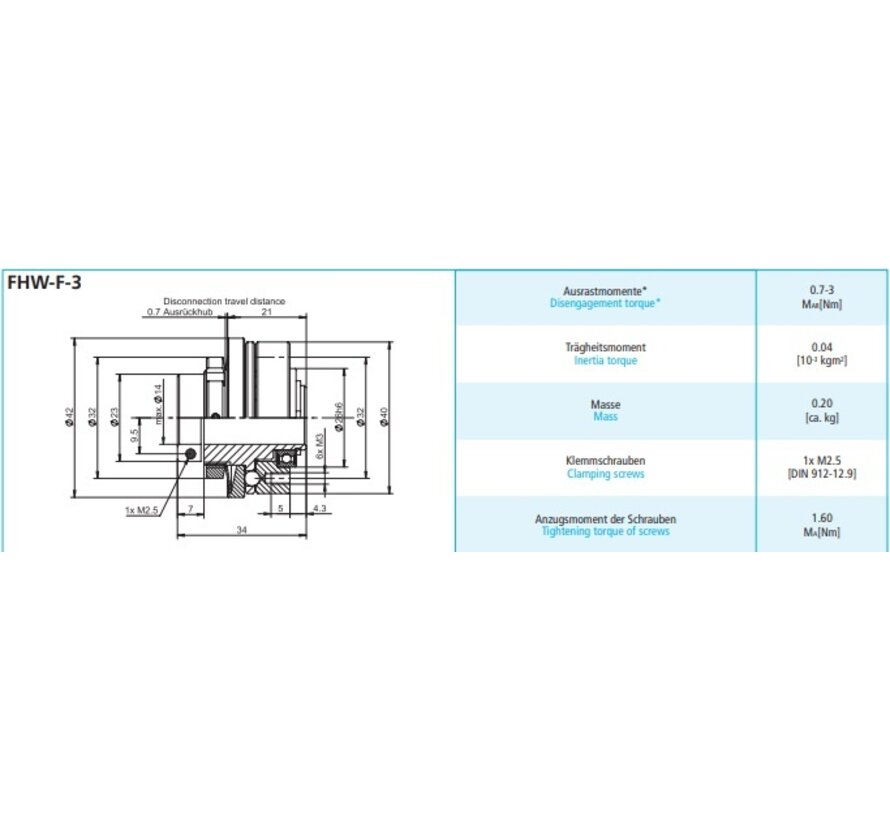

- Disengagement torque from 0.7 to 400 Nm
- Shaft diameter up to 50 mm
- With clamping ring
Features
- Adjustable disengagement torque
• Very low residual moment
• Backlash-free
• High repetition accuracy
• Maintenance-free
• All working parts hardened
• Automatic re-engagement after 360°
• Reliable (positive) and fast disengagement
• Very low mass moment of inertia
• Various options and special versions on request!
