Indirect safety couplings FHW-B

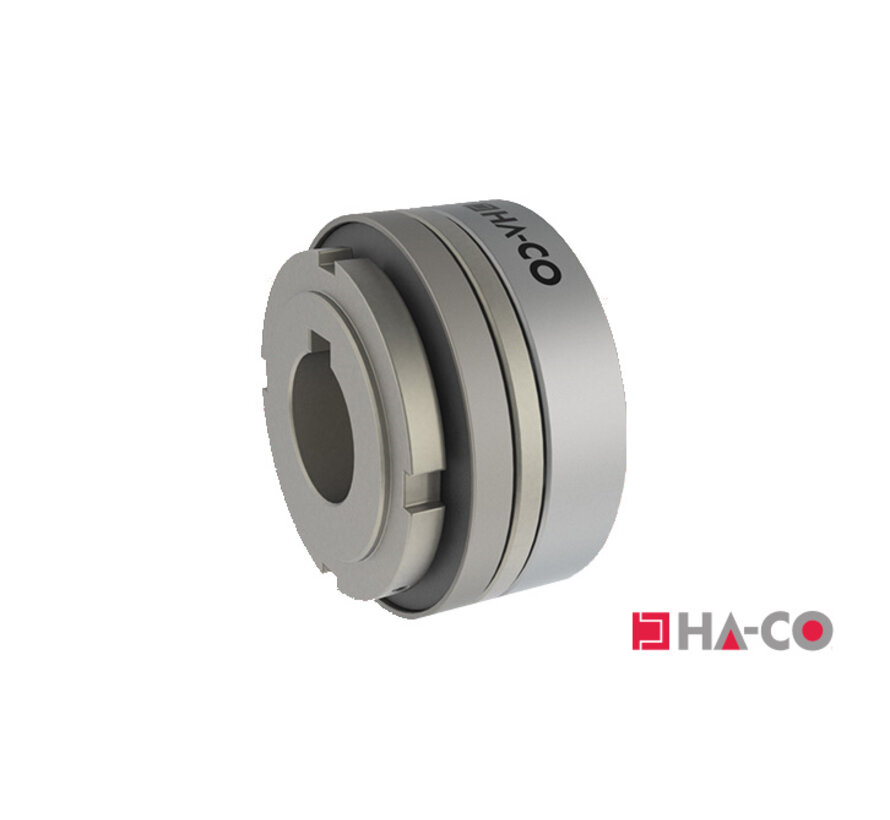

Safety coupling FHW-B
The FHW-B is standardized equipped with keyway and sealed groove ball bearing.

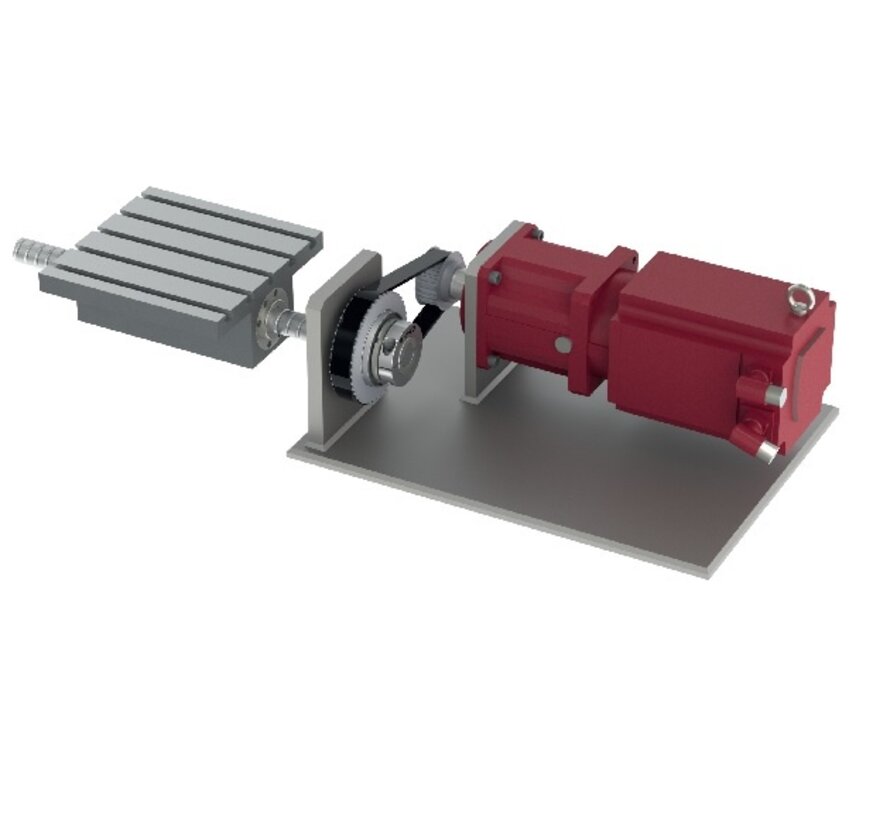

In indirect drives the central axes of drive end and against the driven side don’t lie on the same axis. The hardened parts provide countless runs and a high reliability.

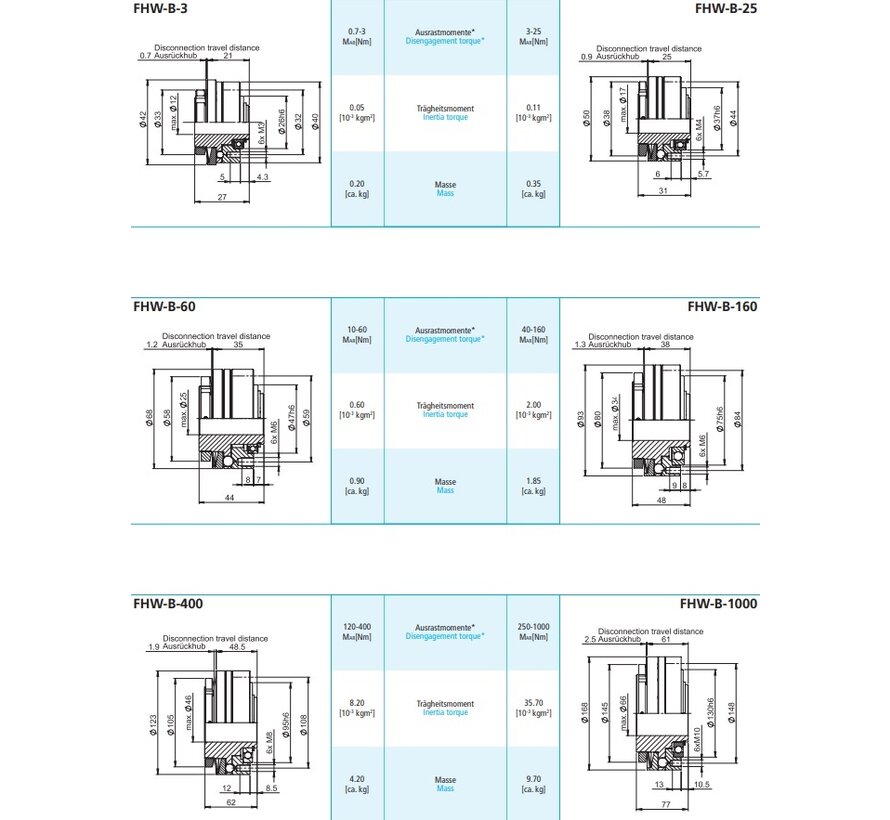

- Disengagement torque from 0.7 to 1000 Nm
- Shaft diameter up to 66 mm
- With keyway and groove ball bearing
Features
- Adjustable disengagement torque
• Very low residual moment
• Backlash-free
• High repetition accuracy
• Maintenance-free
• All working parts hardened
• Automatic re-engagement after 360°
• Reliable (positive) and fast disengagement
• Very low mass moment of inertia
• Various options and Special versions on request!
