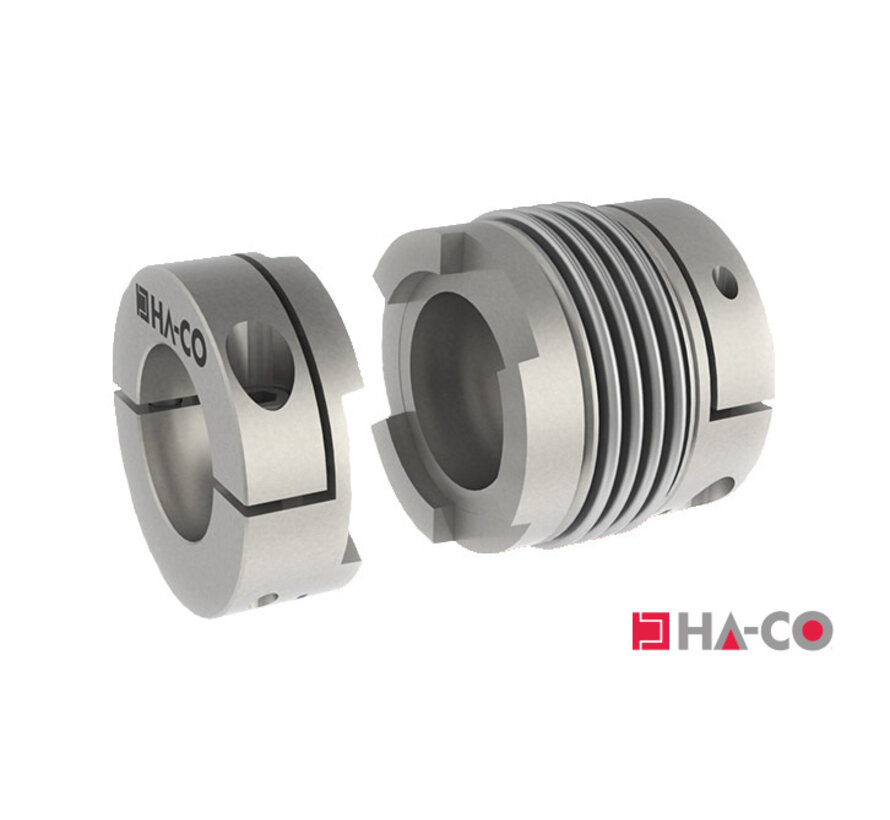

Metal bellow couplings MKS-S
Metal bellow couplings MKS-S

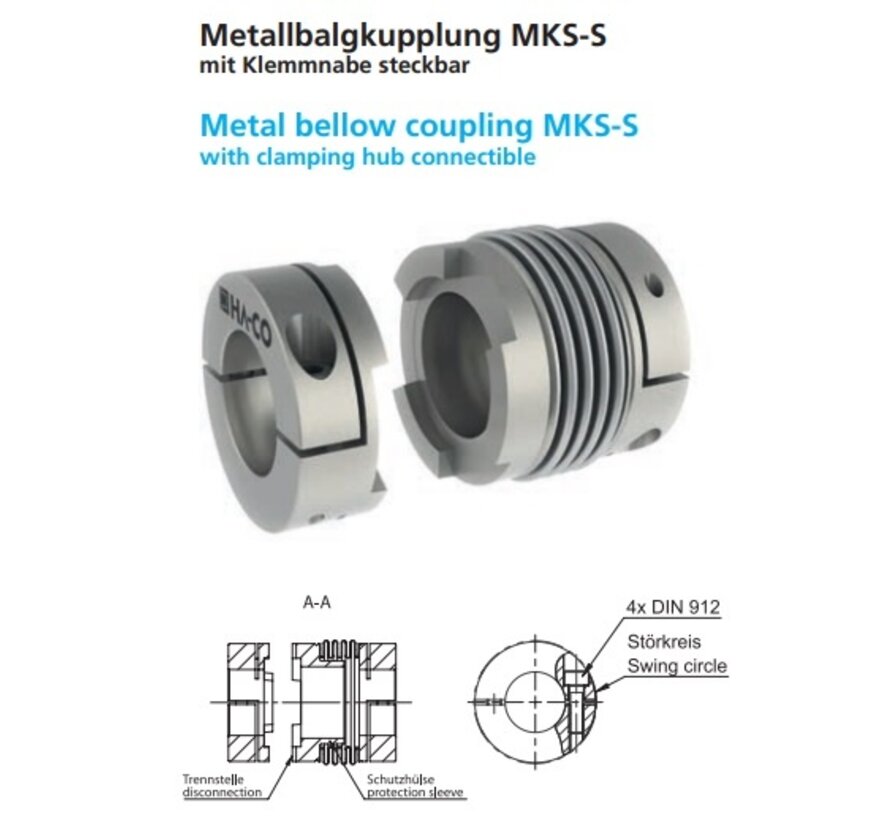

The metal bellow is protected against overstretching in case of incorrect manipulation (wrong plug position) by the protective sleeve mounted inside. The axial pretension of the metal bellow (1 mm each) guarantees absolute freedom from play in the plug connection.

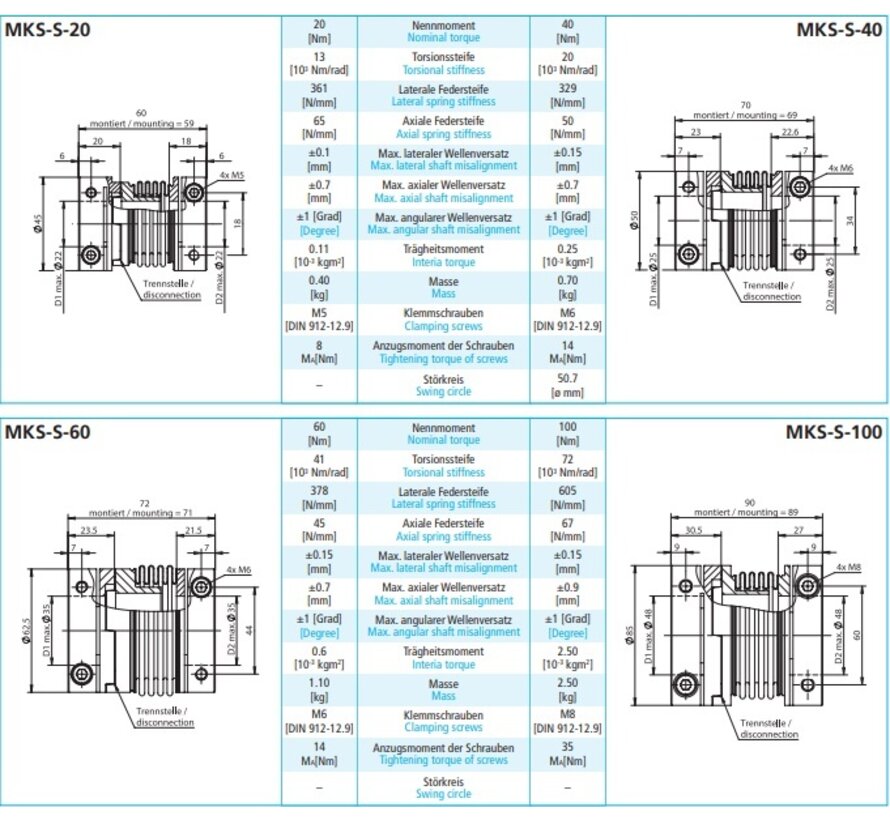

- Nominal torque from 20 to 100 Nm
- Shaft diameter up to 48 mm
- Clamping hub connectible, balanced
Features
- Very low mass moment of inertia
- Easy to instal due to plug-in clamping hub
- Small installation space
- Maintenance-free
- Balanced
- Metal bellow protected of compression by a sleeve
- Compensation of alignment mistakes
Material of the hubs: Steel
Material of bellows: Stainless steel
Connection bellow-hub: Welded
