Metal bellow couplings MKJ-S
Metal bellow couplings MKJ-S

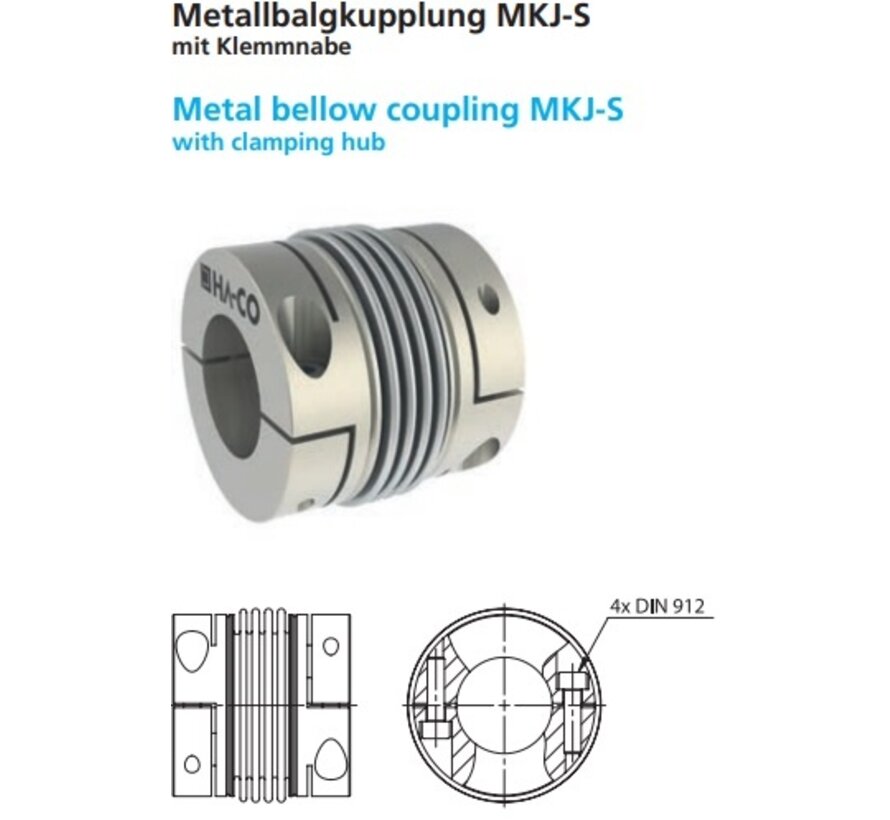

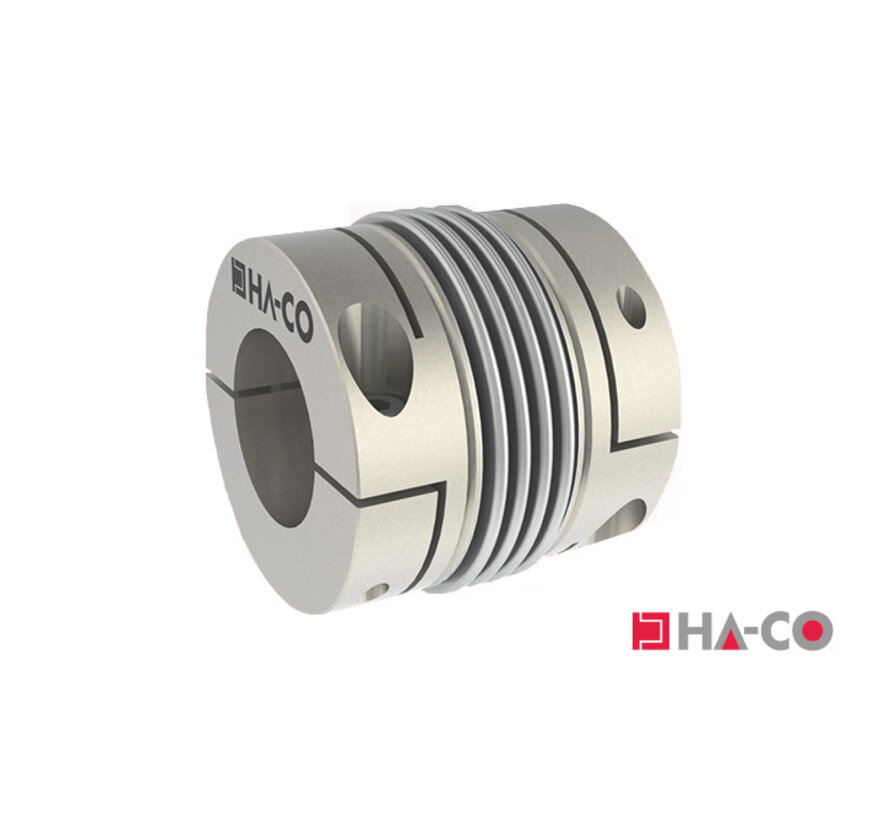

MKJ-S is the big brother of the MKJ series. The clamping hubs are equipped with two screws. The hubs are made of steel and welded to the metal bellows. The ideal solution for an exact and angular connection of two shafts. Axial, lateral and angular misalignment between two shaft ends can be compensated.
- Nominal torque from 15 to 500 Nm
- Shaft diameter up to 60 mm
- Ideal for servo motors, with clamping hub
Features
- Backlash-free torque transmission
- Small installation space
- High temperature resistance (150°C)
- Very low mass moment of inertia
- Ideal for servo motors
- Low restore forces on bearing points
