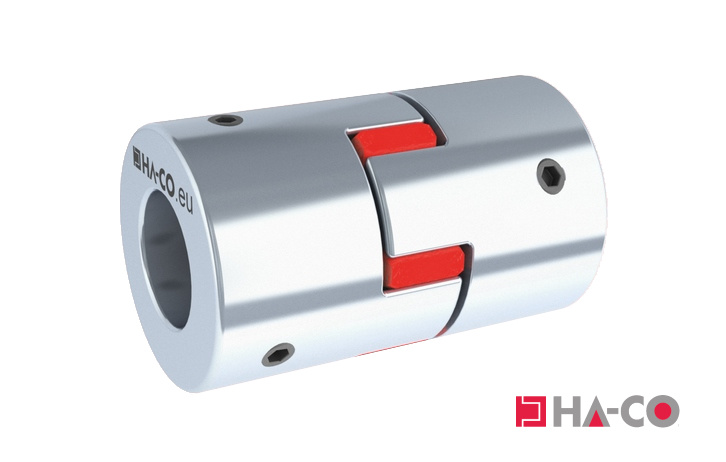

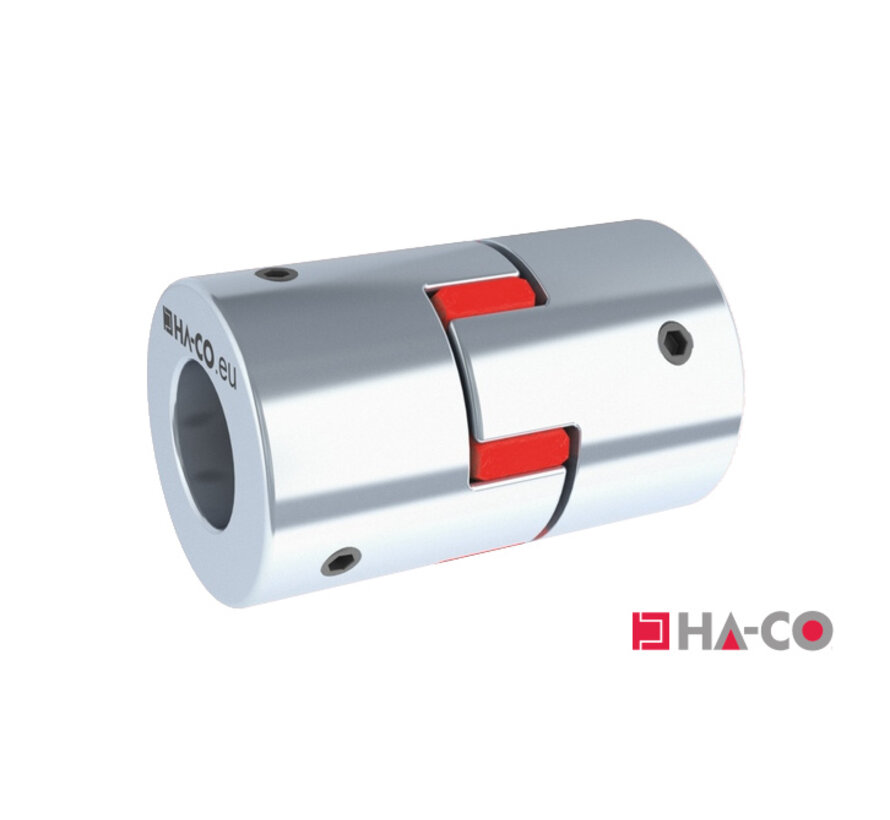

Elastomer coupling SKM
Elastomer coupling SKM

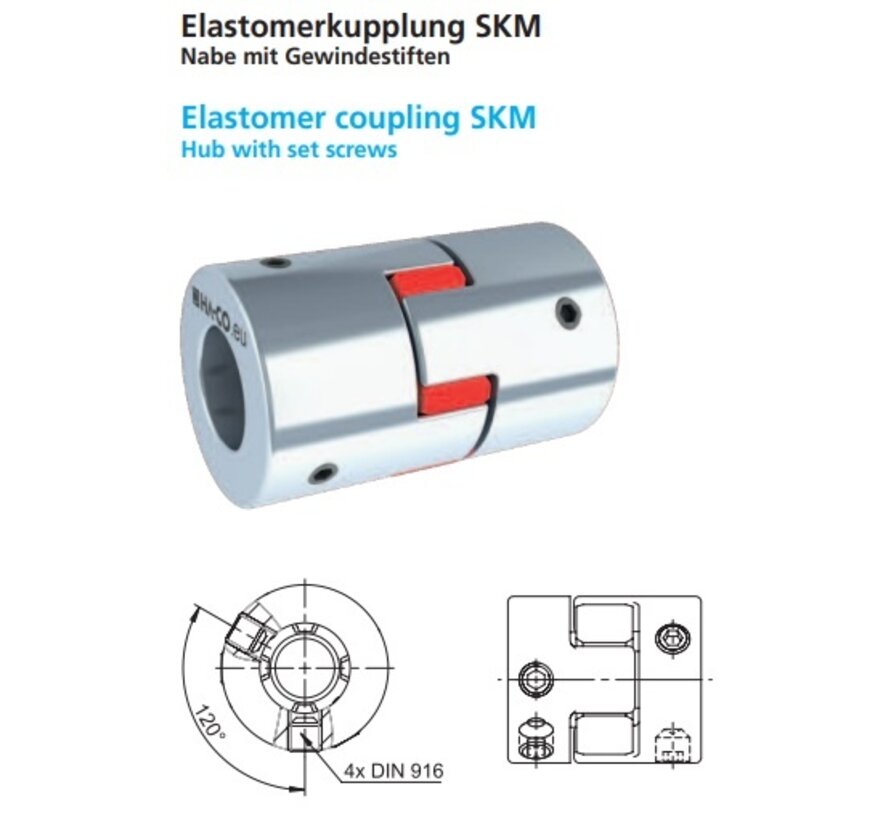

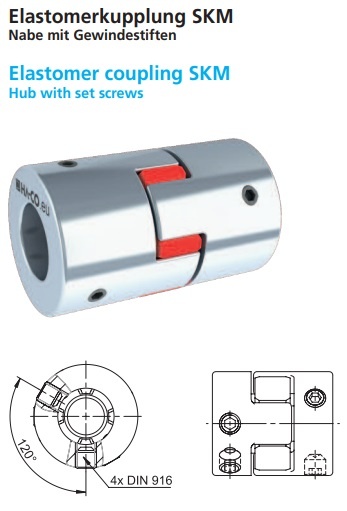

Design with hub, setscrews and optimum damping characteristics. SKM compensating coupling!
- Nominal torque from 1.8 to 21 Nm
- Max. torque from 3.6 to 42 Nm
- Speed from 3600 to 24000 rpm
Features
- Clamping hub made of aluminium
• Backlash-free torque transmission due to preload
• Easy to install, pluggable
• Electrically isolating
• Optimum damping behaviour due to elastomer stars in 98° Shore A design
• High temperature resistance
• Very low mass moment of inertia
• Ideal for servo motors
• Other elastomer star hardness available
• Special designs on request
