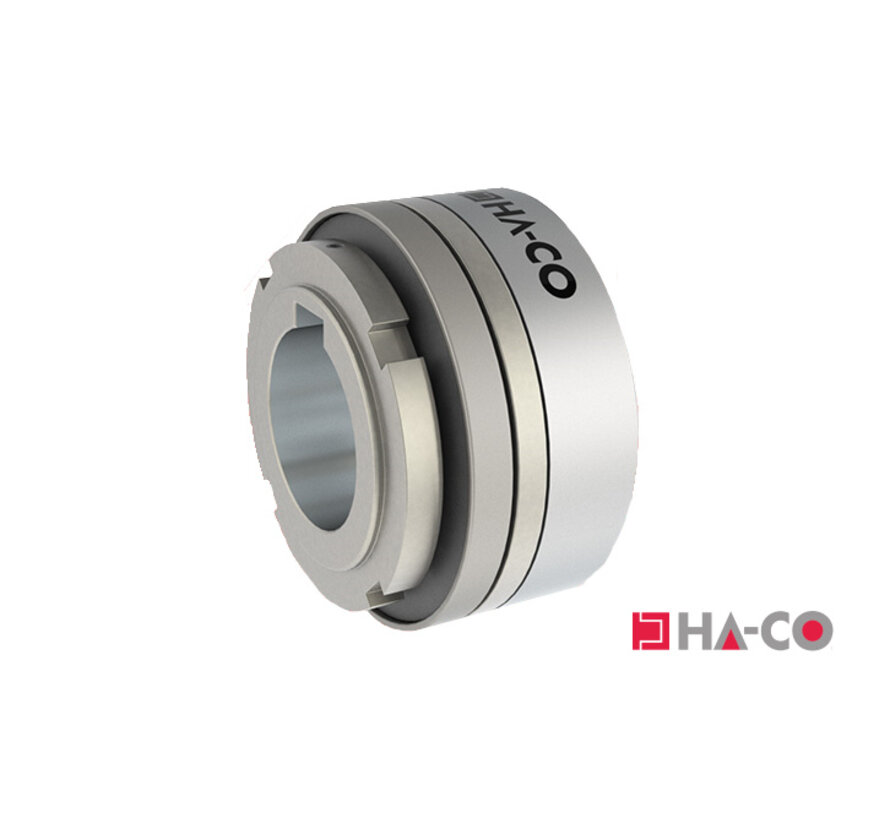

Indirect safety couplings FHW-D
Safety couplings FHW-D
Space saving in radial direction and still satisfy all requirements: FHW-D.

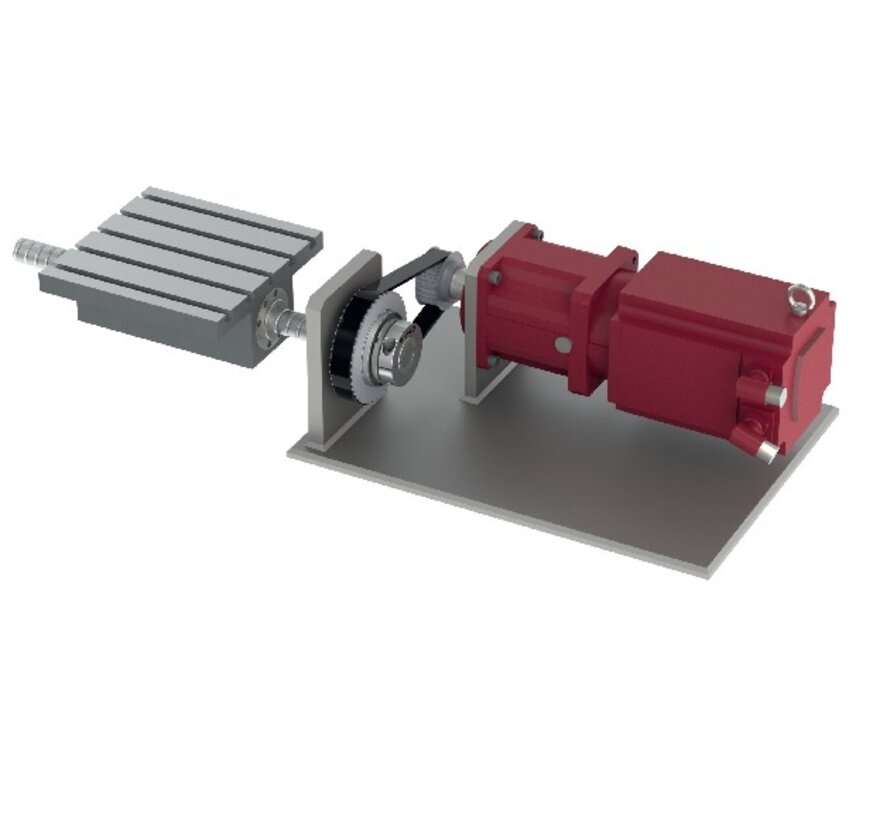

In indirect drives the central axes of drive end and against the driven side don’t lie on the same axis. With the use of a needle roller bearing instead of a groove ball bearing, the coupling outer diameter is comparatively small.

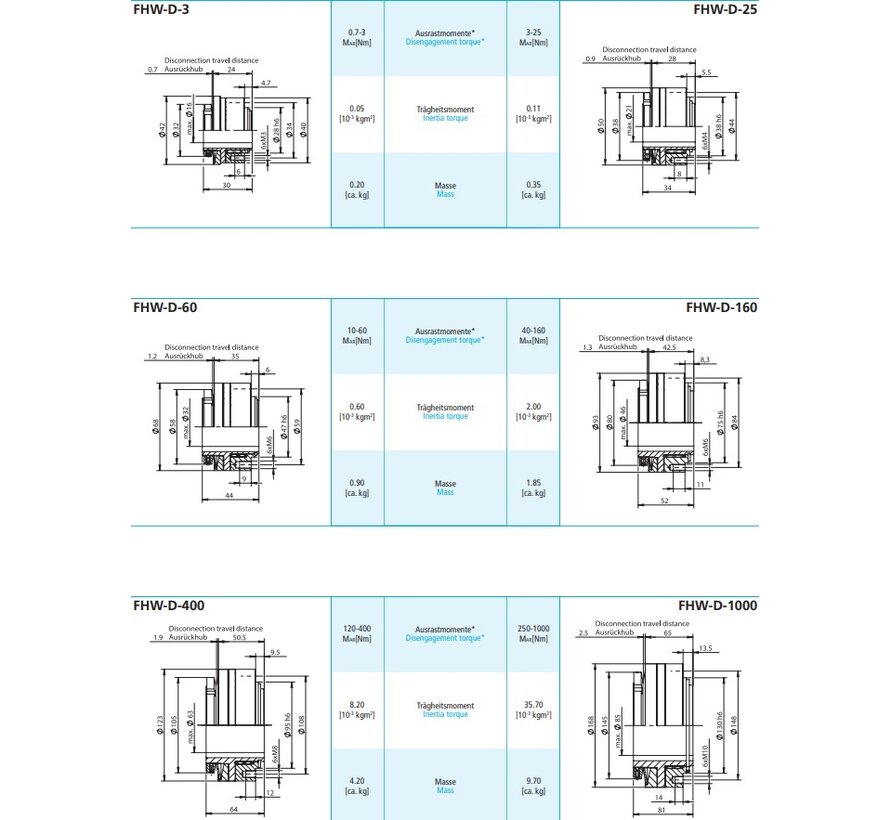

- Disengagement torque from 0.7 to 1000 Nm
- Shaft diameter up to 85 mm
- With keyway and needle roller bearing
Features
- Small diameter by use of needle roller bearing
• Adjustable disengagement torque
• Very low residual moment
• Backlash-free
• High repetition accuracy
• Maintenance-free
• All working parts hardened
• Automatic re-engagement after 360°
• Reliable (positiv) and fast disengagement
• Very low mass moment of inertia
• Various options and special versions on request!
