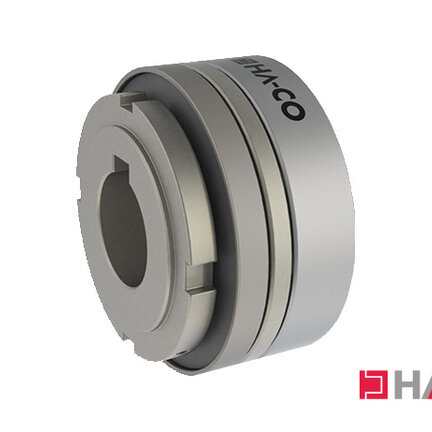

Indirect Safety Couplings

In indirect drives the central axes of drive end and against the driven side don’t lie on the same axis.

All safety couplings for indirect drives have one mounting flange equipped with six metric threads. Your individual attachment whether a belt pulley,- sprocket- or a cogwheel
is bolted on. An excellent concentric accuracy and axial true run are achieved by the above centering collar manufactured in tolerence class h6 and finely twisted plan support.
For an optimal force curve it is recommended to position the inside out turning attachment directly over the ball bearing.
Warning: The keyway is not aligned with the hole pattern of the mounting flange. It is possible on request.
