Elastomer Couplings & Claw Couplings
Elastomer couplings belong to the group of claw couplings and are used in applications that are susceptible to vibrations and shocks.
Elastomer couplings belong to the group of claw couplings and are used in applications that are susceptible to vibrations and shocks.
The rotatable and vibration-damping elastomer coupling & claw coupling is easy to plug in and stands out positively thanks to its surprisingly small design format. This ensures that the connection between axle and motor can be easily disconnected without having to unscrew the coupling. The elastomer core can bend in several directions so that it can compensate for parallel, angular and axial misalignments between the two shafts.
The couplings manufactured by HA-CO prove to be practical due to their backlash-free torque transmissions even in very demanding applications. Thanks to elastomer stars of different hardness, different torques can be accommodated and, if necessary, easily retrofitted.

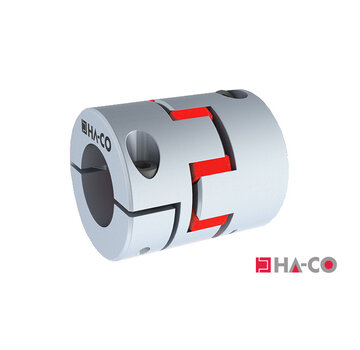

Elastomer coupling SKK
• Nominal torque from 5 to 560 Nm
• Max. torque from 25 to 1120 Nm
• Speed from 400 to 19000 rpm€ 0,-

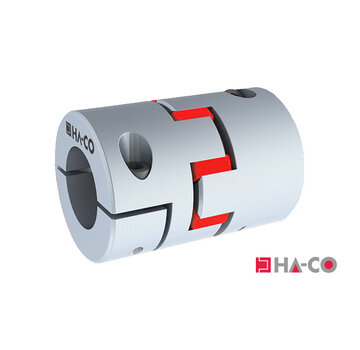

Elastomer coupling SKL
• Nominal torque from 4 to 655 Nm
• Max. torque from 8 to 1310 Nm
• Speed from 3600 to 13000 rpm€ 0,-
Elastomer coupling SKM
• Nominal torque from 4 to 655 Nm
• Max. torque from 8 to 1310 Nm
• Speed from 3600 to 13000 rpm€ 0,-

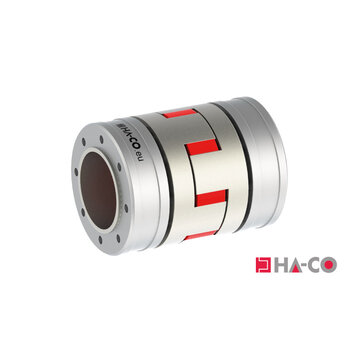

Precision/elastomer coupling SKP
• Nominal torque from 4 to 655 Nm
• Max. torque from 8 to 1310 Nm
• Speed from 7200 to 25400 rpm€ 0,-

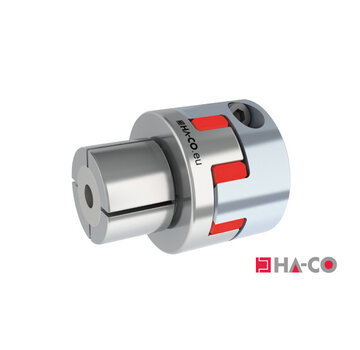

Elastomer coupling SKS
• Nominal torque from 1.8 to 200 Nm
• Max. torque from 3.6 to 400 Nm
• Speed from 6000 to 19000 rpm€ 0,-

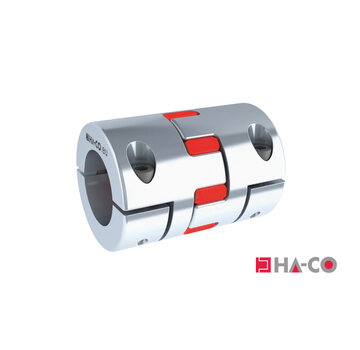

Elastomer coupling SKT
• Nominal torque from 4 to 655 Nm
• Max. torque from 8 to 1310 Nm
• Speed from 3600 to 13000 rpm€ 0,-

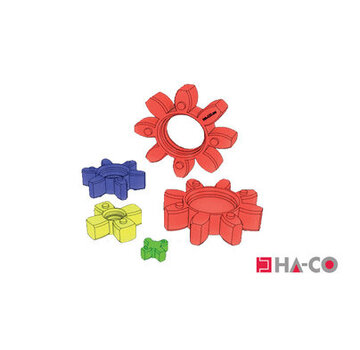

Elastomer spiders
The elastomer spider is the intermediate piece in elastomer claw couplings. Its use between the hubs provides damping properties.
€ 0,-
