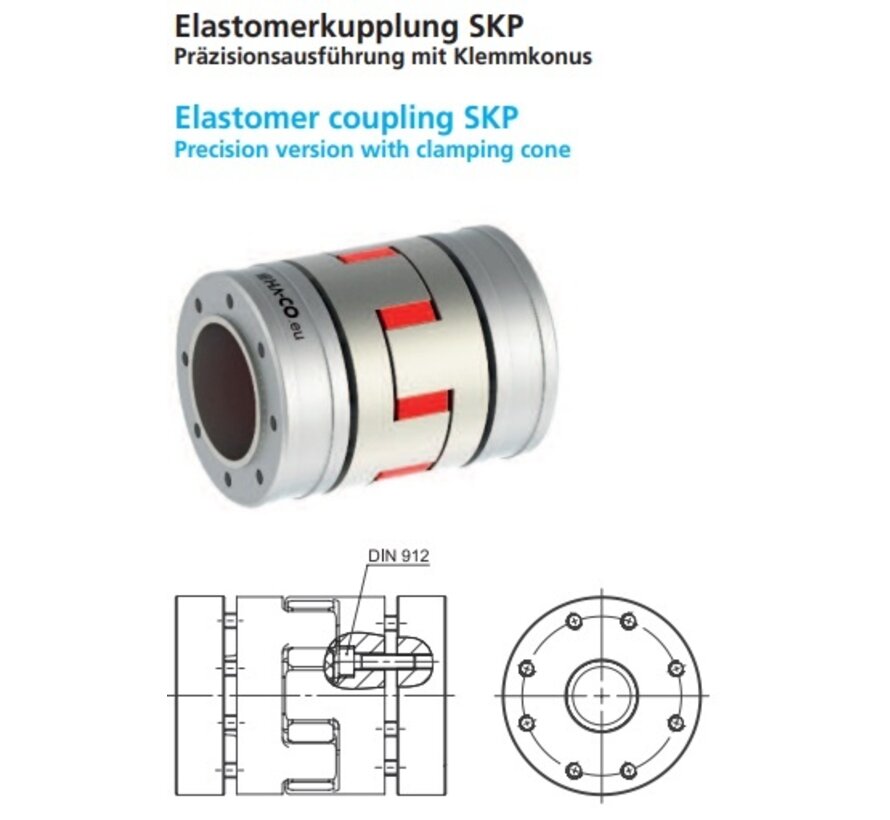

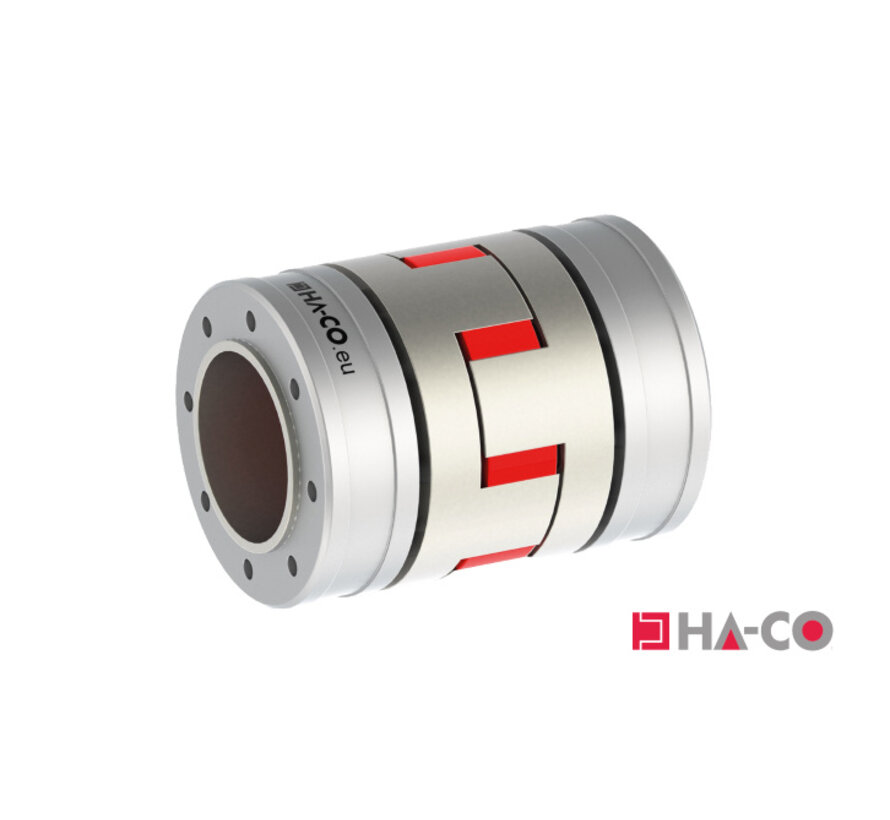

Precision/elastomer coupling SKP
Precision/elastomer coupling SKP
Clutch with hub and clamping ring made of 42CrMo4. SKP compensating coupling!

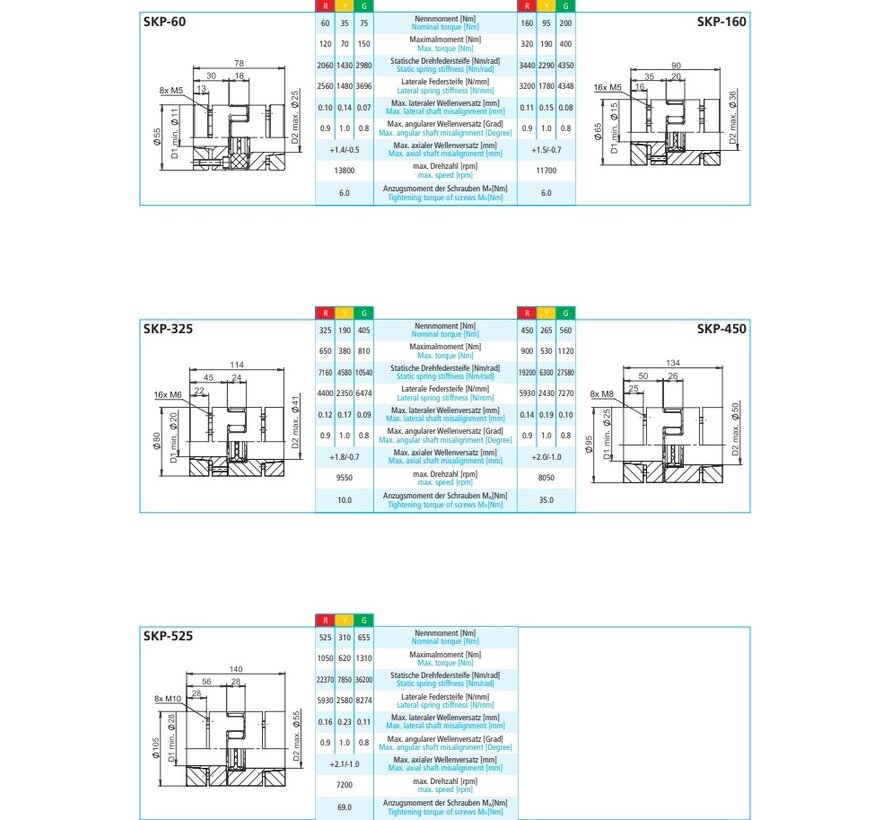

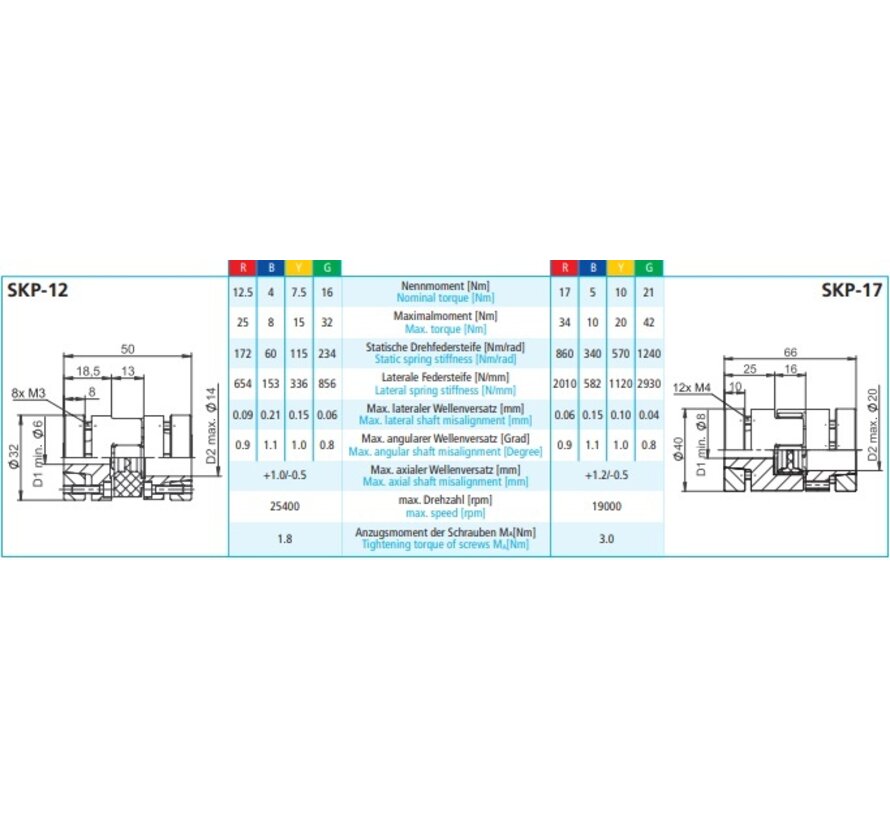

- Nominal torque from 4 to 655 Nm
- Max. torque from 8 to 1310 Nm
- Speed from 7200 to 25400 rpm
Features
- Clamping hub made of aluminium
• Backlash-free torque transmission due to preload
• Easy to install, pluggable
• Electrically isolating
• Optimum damping behaviour due to elastomer stars in 98° Shore A design
• High temperature resistance
• Very low mass moment of inertia
• Ideal for servo motors
• Iso fit H6
• Other elastomer star hardness available
• Special designs on request
