Metal bellow couplings MKA-S
Metal bellow couplings MKA-S

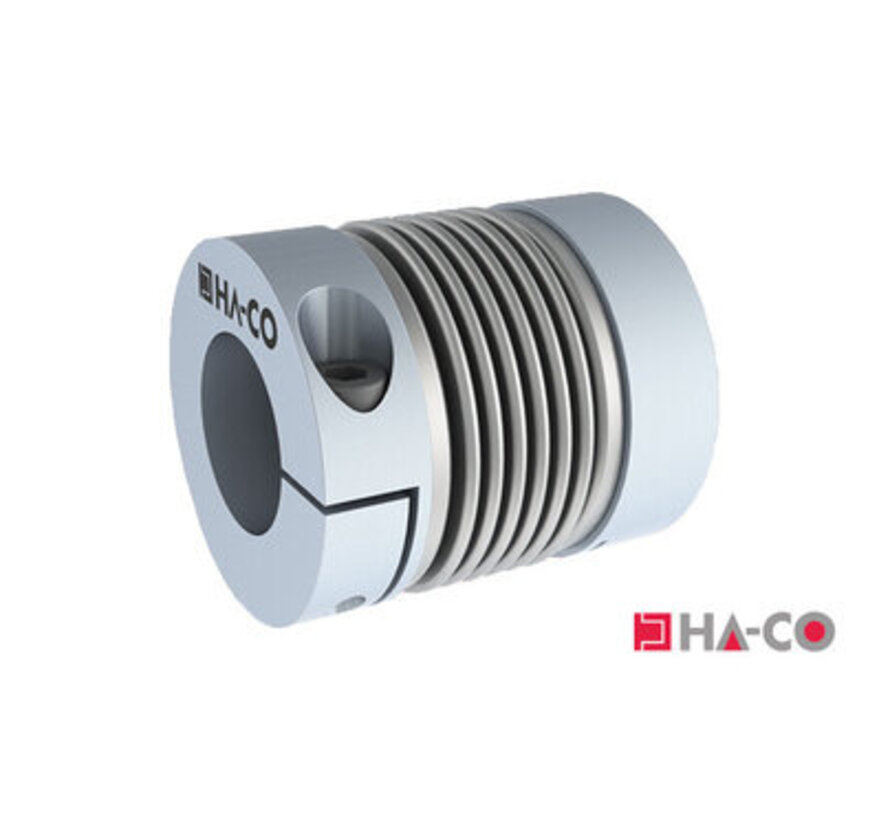

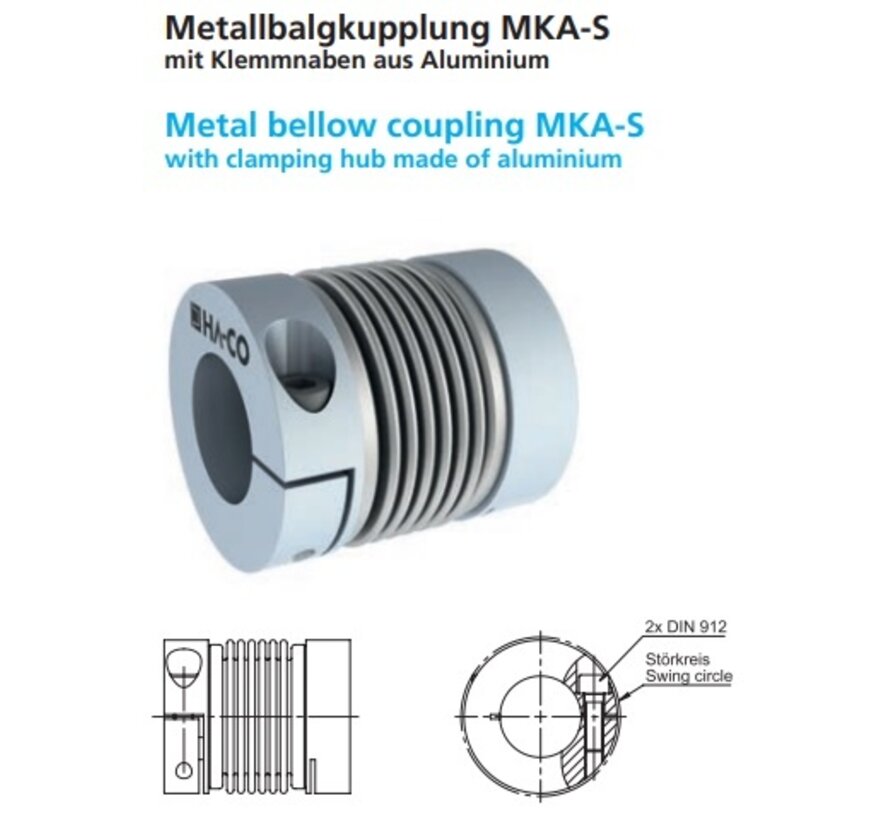

MKA-S is the weight-optimised metal bellows coupling with aluminium clamping hubs. With only one clamping screw per hub it is very easy to install. The stable connection between the stainless steel metal bellows and the aluminium clamping hubs as well as the torsionally stiff metal bellows guarantee absolute freedom from backlash. Suitable for applications from 15 to 500Nm.

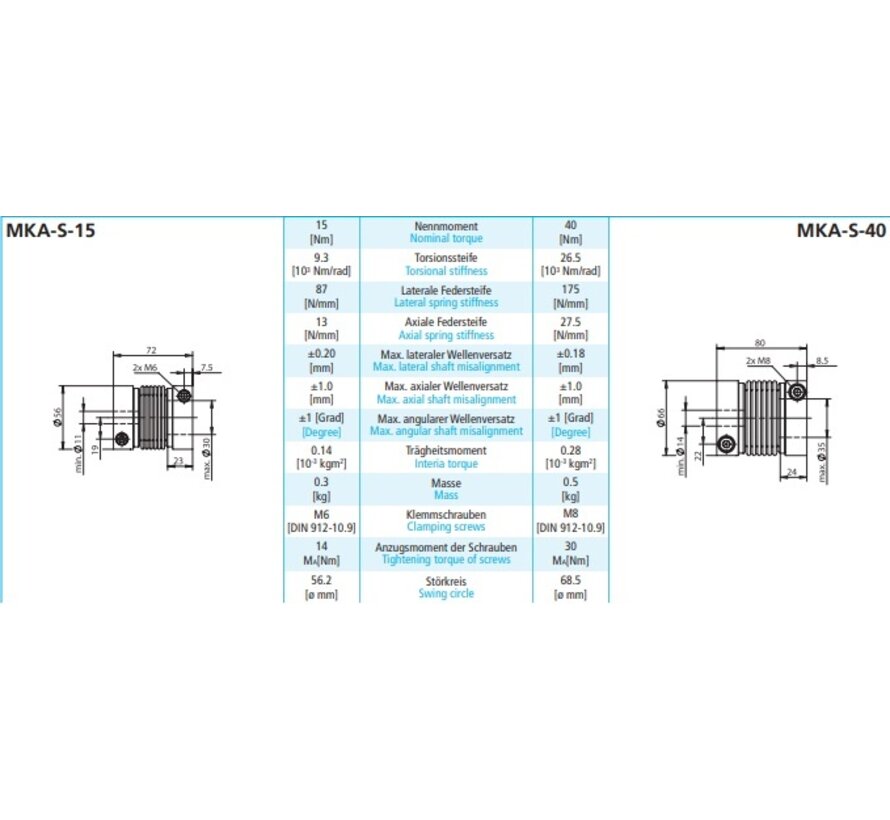

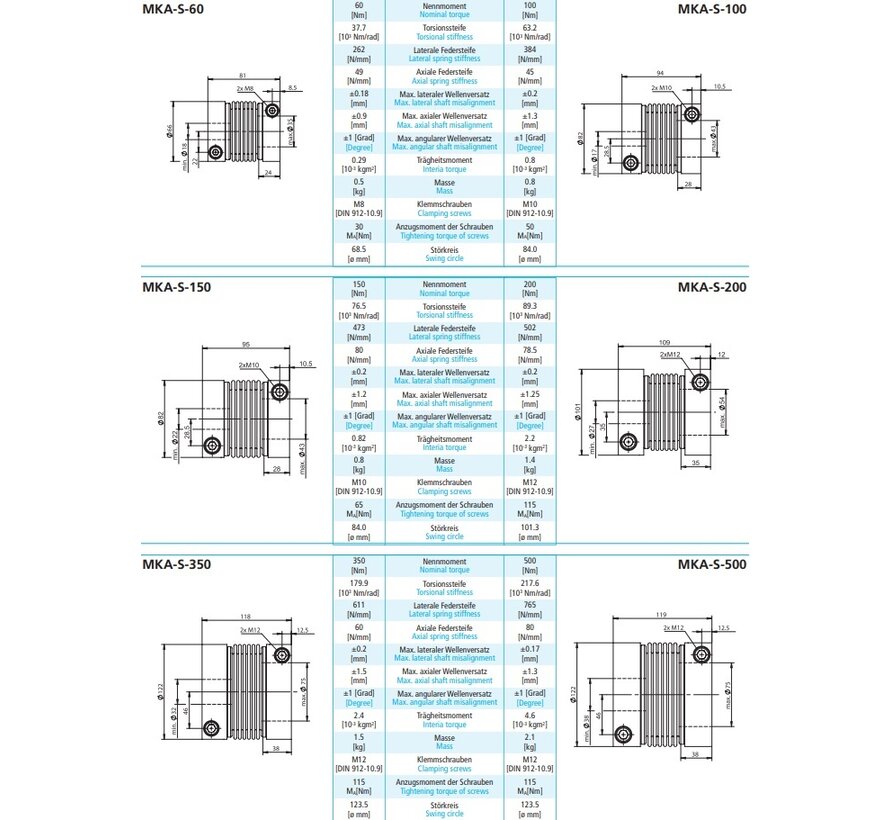

- Nominal torque from 15 to 500 Nm
- Shaft diameter up to 75 mm
- clamping hub made of aluminium, easy to install
Characteristics
- Clamping hub made of high-strength aluminium
- Backlash-free torque transmission
- Small installation space
- Easy to install
- Maintenance-free
- High temperature resistance (150°C)
- Very low moment of inertia
- Ideal for servo motors
- Low restore forces on bearing points
