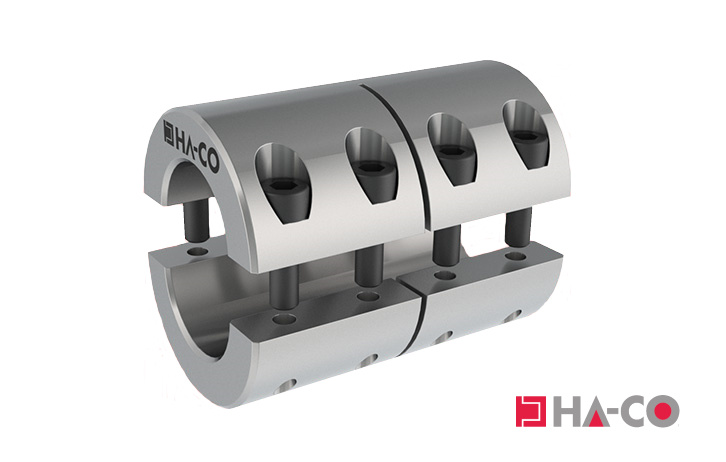

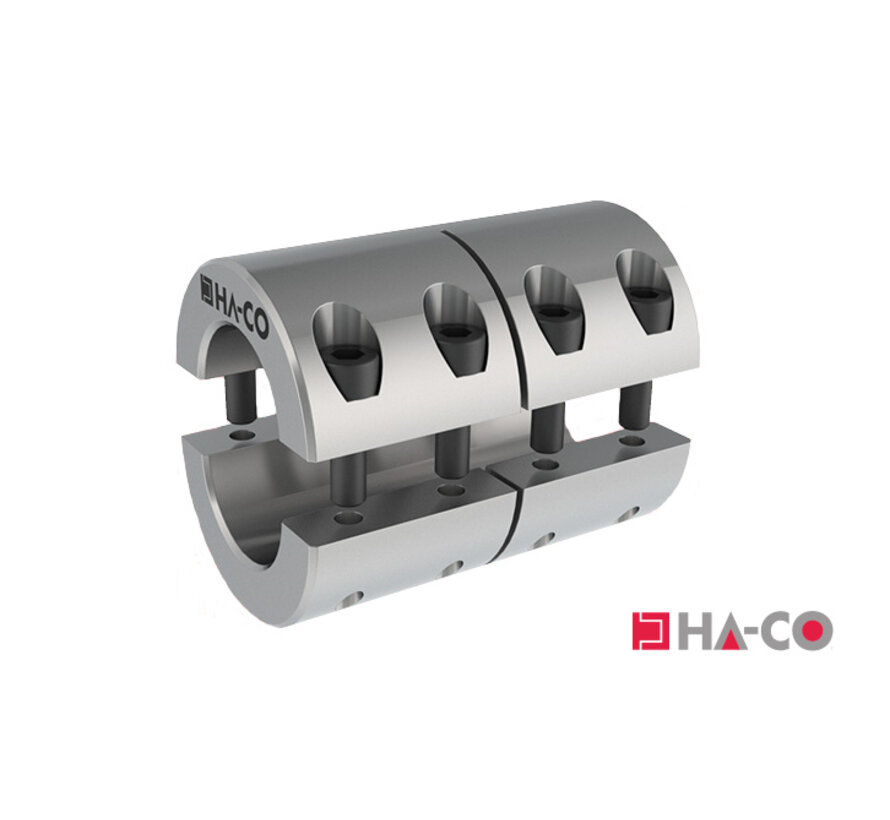

Rigid couplings KTS / KTE / KTA devided two-piece
Rigid couplings KTS / KTE / KTA devided (two-piece)
- Maximum torque up to 5000Nm, Speed up to 8000rpm
- Inner-Ø up to 80mm, Special designs on request
Features
Split rigid couplings are called two-piece shell couplings. Two-piece rigid couplings have the same advantages as the one-piece version but shines with easier assembly.
KTS (Half-shell clamping, steel)
KTE (Half-shell clamping, stainless steel)
KTA (Half-shell clamping, aluminium)
- Torsionally stiff and backlash-free
• Wear- and maintenance-free
• Compact design
• Easy mounting
• No damage to the shaft
• With screw lock
• Bright finish
• On request with keyway DIN6885/1
• Temperature range -40°C to +175°C
• Maximum speed up to 8'000 rpm
• Also available in aluminium if required
• Various options, special designs and other dimensions available on request!
