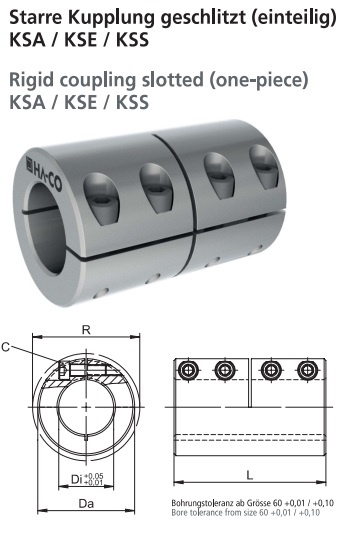

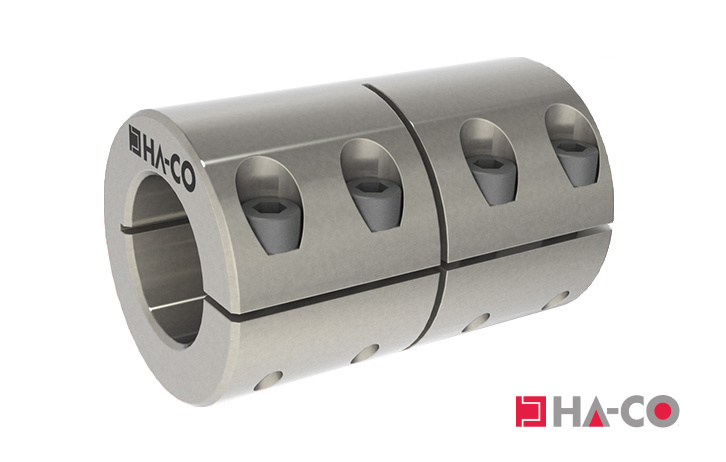

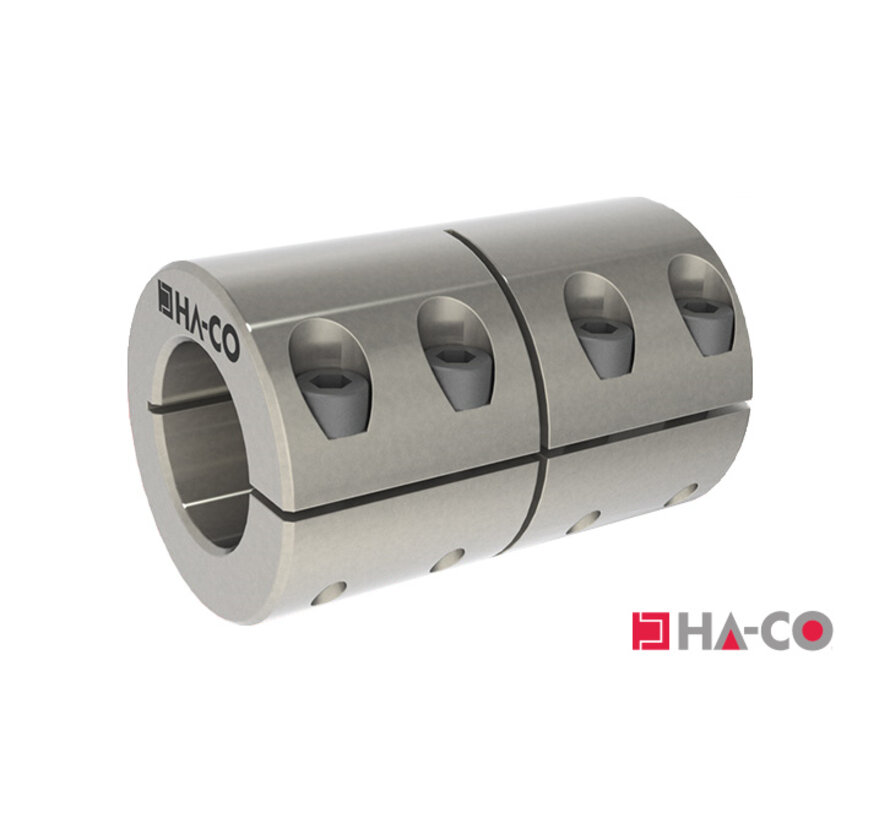

Rigid coupling KSS / KSE / KSA one-piece
Rigid coupling KSS / KSE / KSA one-piece
- Maximum torque up to 5000Nm, Speed up to 8000rpm
- Inner-Ø up to 80mm, Special designs on request
Features
Rigid couplings slotted are called one-piece shell couplings and connect shafts when there are no misalignments.
KSS (steel)
KSE (stainless steel)
KSA (aluminium)
- Torsionally stiff and backlash-free
• Wear- and maintenance-free
• Compact design
• Simple, safe and fast assembly
• No damage to the shaft
• With screw lock
• Bright finish
• On request with keyway DIN6885/1
• Temperature range -40°C to +175°C
• Maximum speed up to 8'000 rpm
• Also available in aluminium if required
• Various options, special designs and other dimensions available on request!
