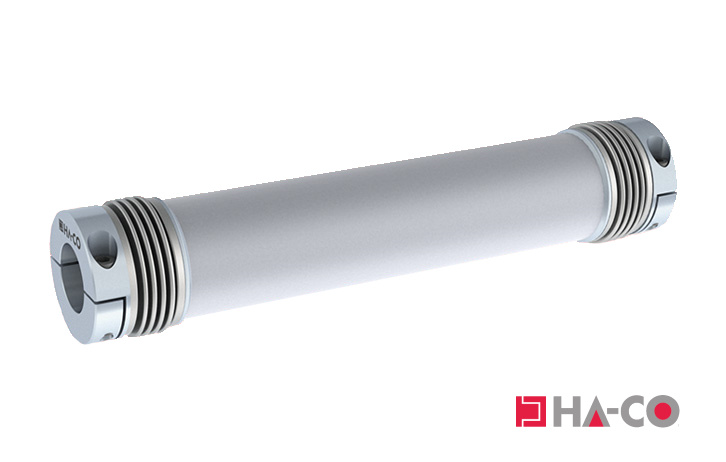

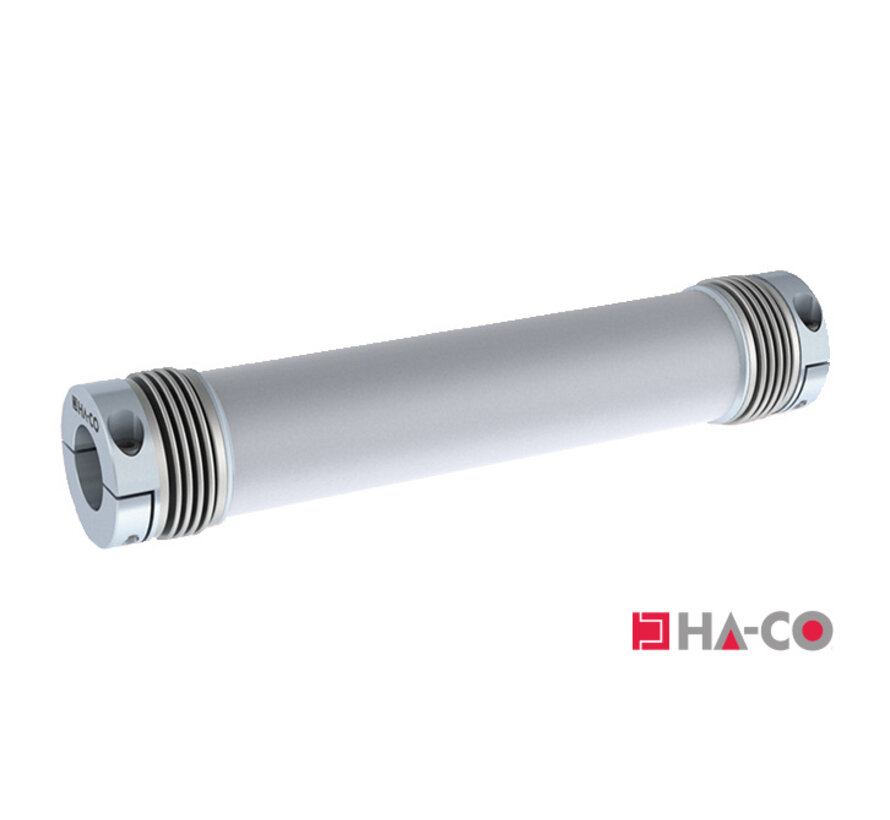

Line shaft SWA-BB (Bellow-Bellow)
Line shaft SWA-BB

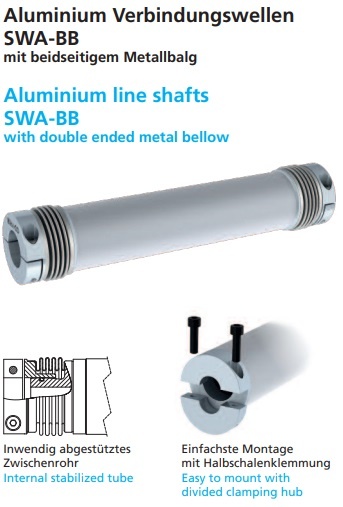

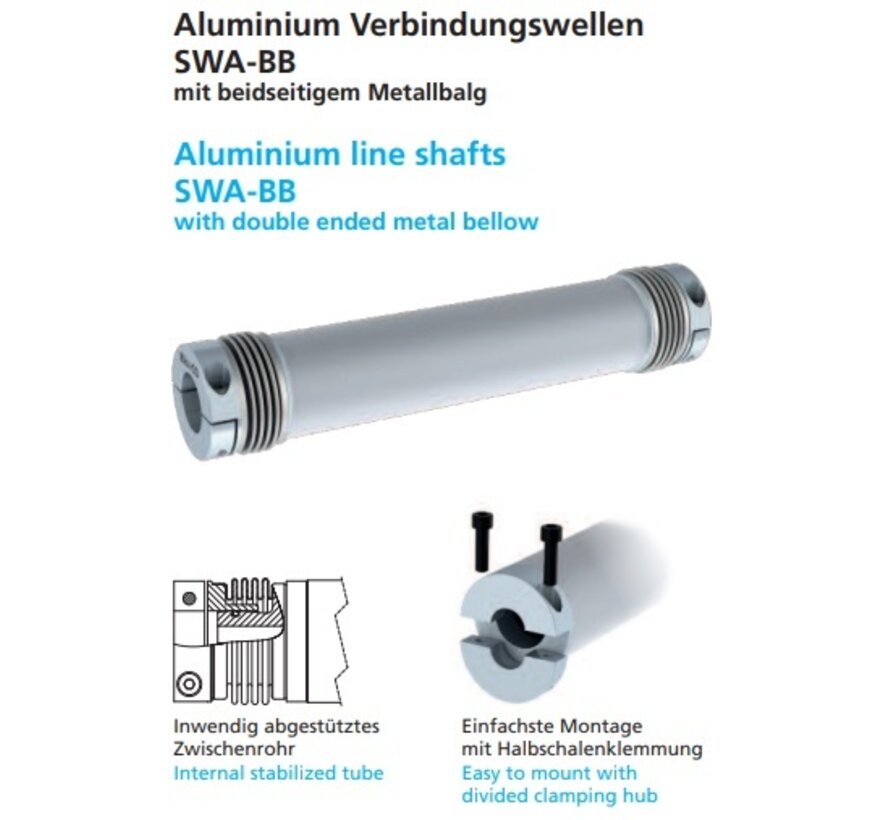

Equipped with two attached metal bellow couplings. High offset compensation of the shaft ends to be connected and best torsional stiffness

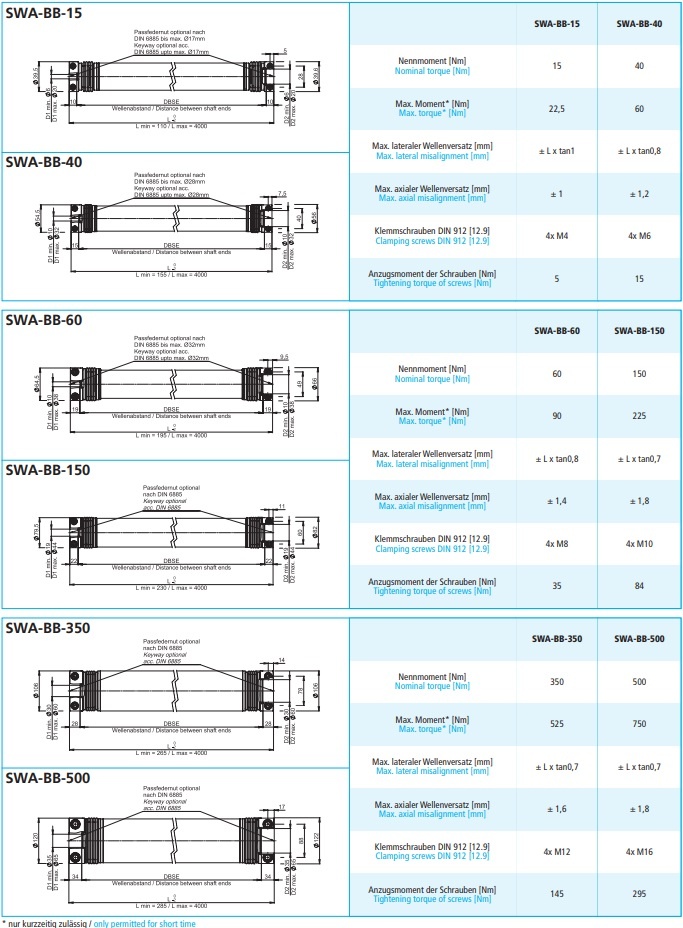

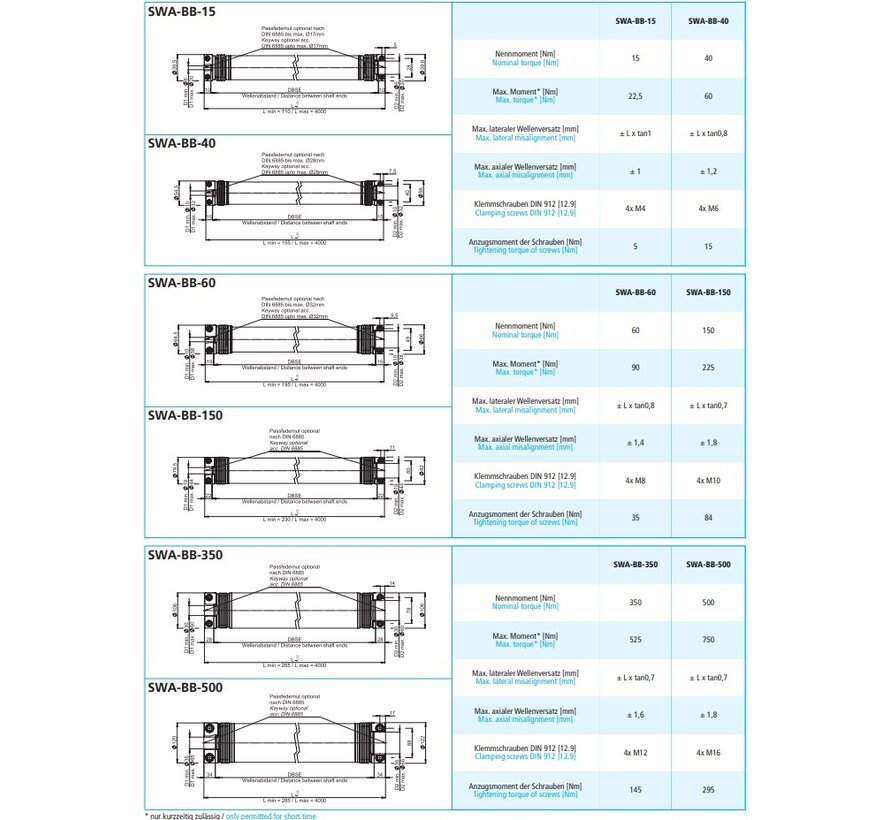

- Nominal torque from 15 to 450 Nm
- Length up to 4000 mm, for diameters from 6 to 54 mm
- Made from high quality aluminium
Features
- Equipped with two metal bellows
- High compensation of shaft missalignment
- Execution in high quality aluminium
- Very low moment of inetria
- Backlash-free
- High torsional stiffness
- Temperature range -30°C to +100°C
Material of hubs+tube: aluminium
Material of bellows: stainless steel
Connection bellow-hub: rolled in
Connection hub-tube: glued
