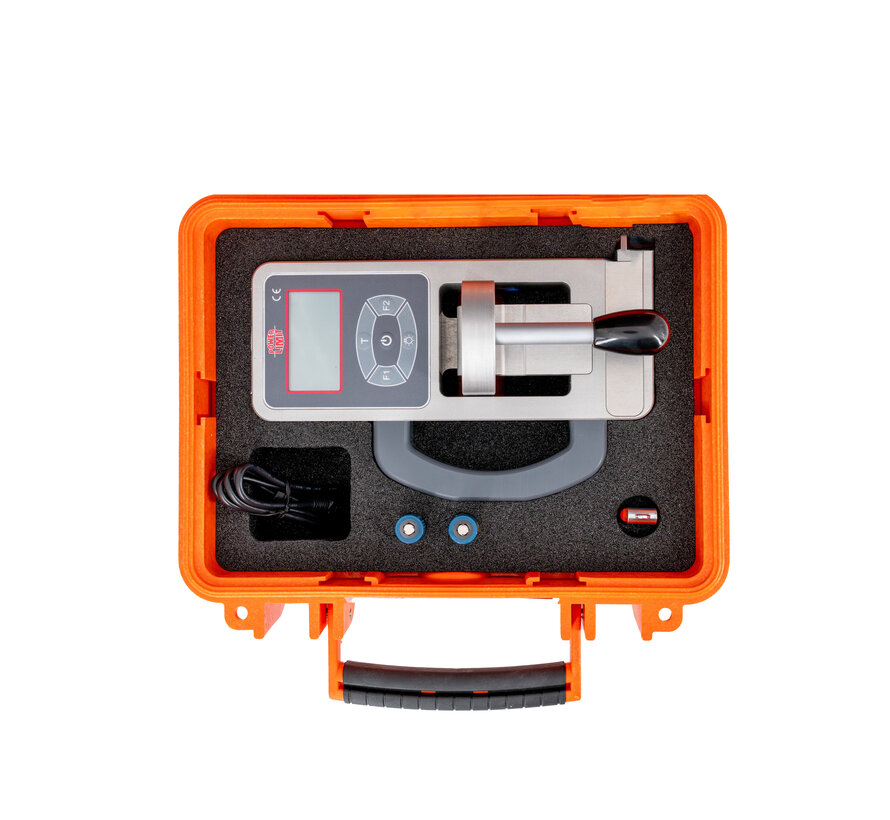

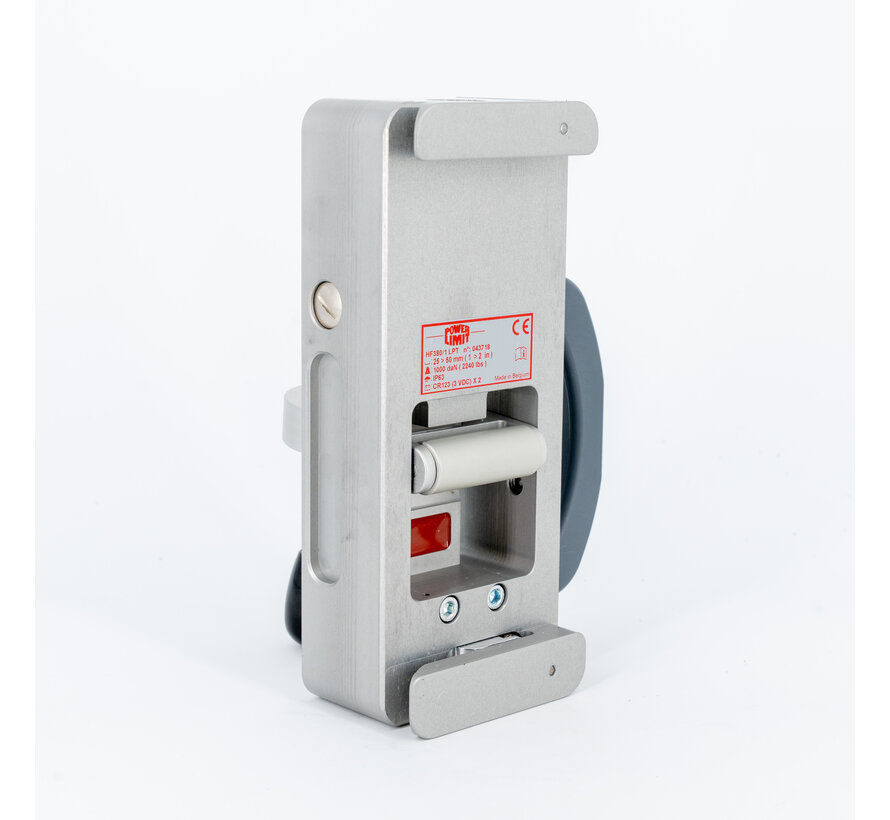

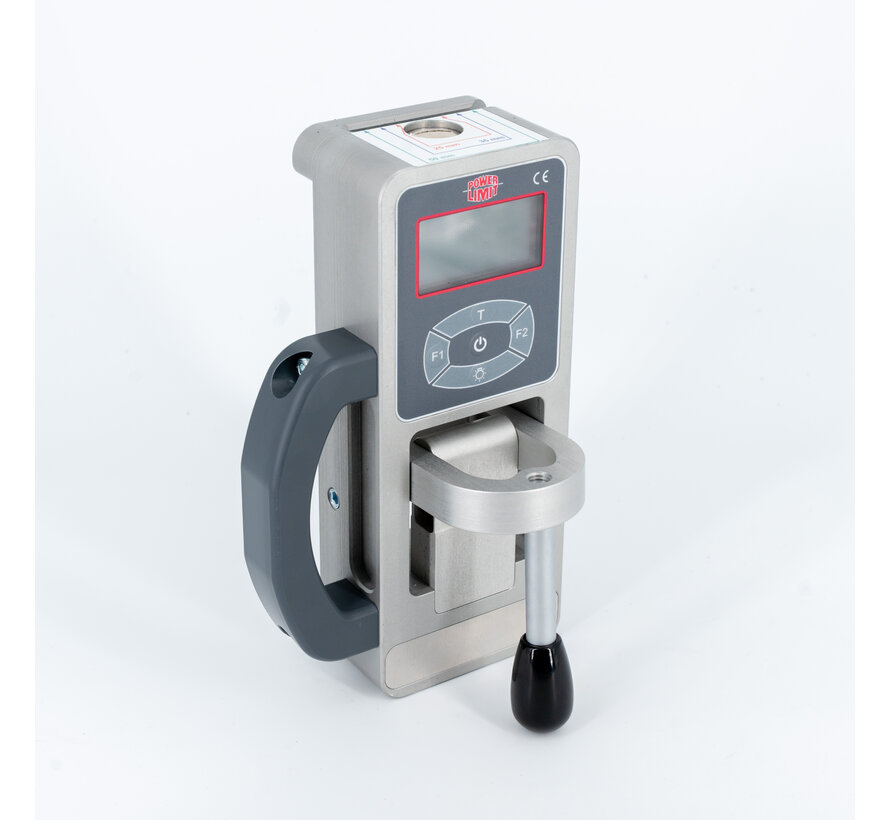

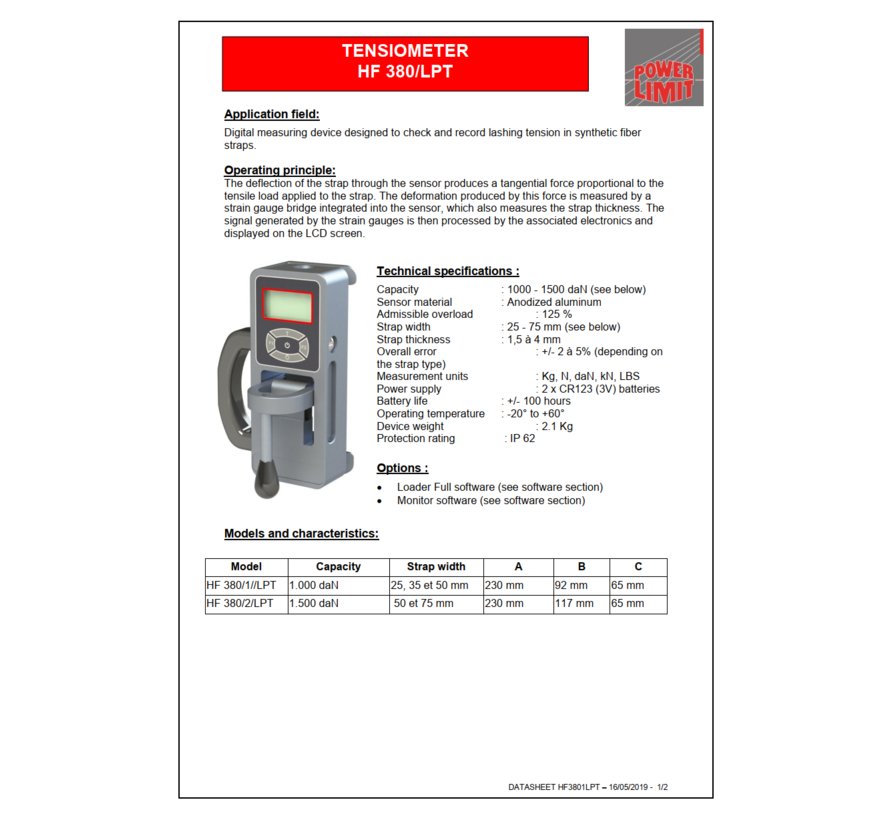

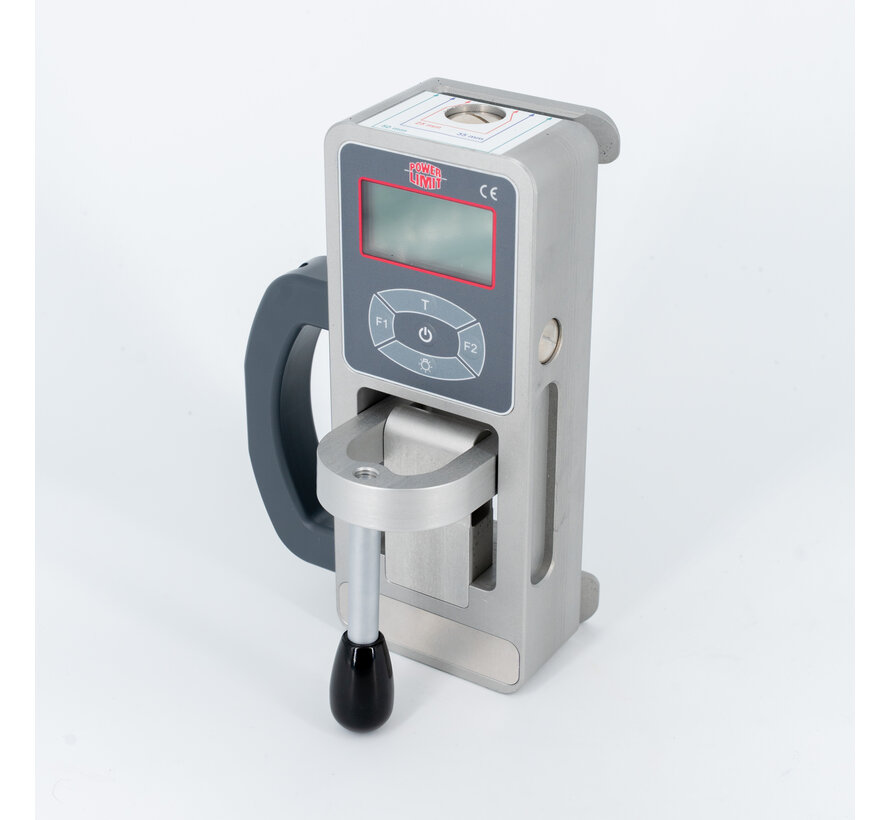

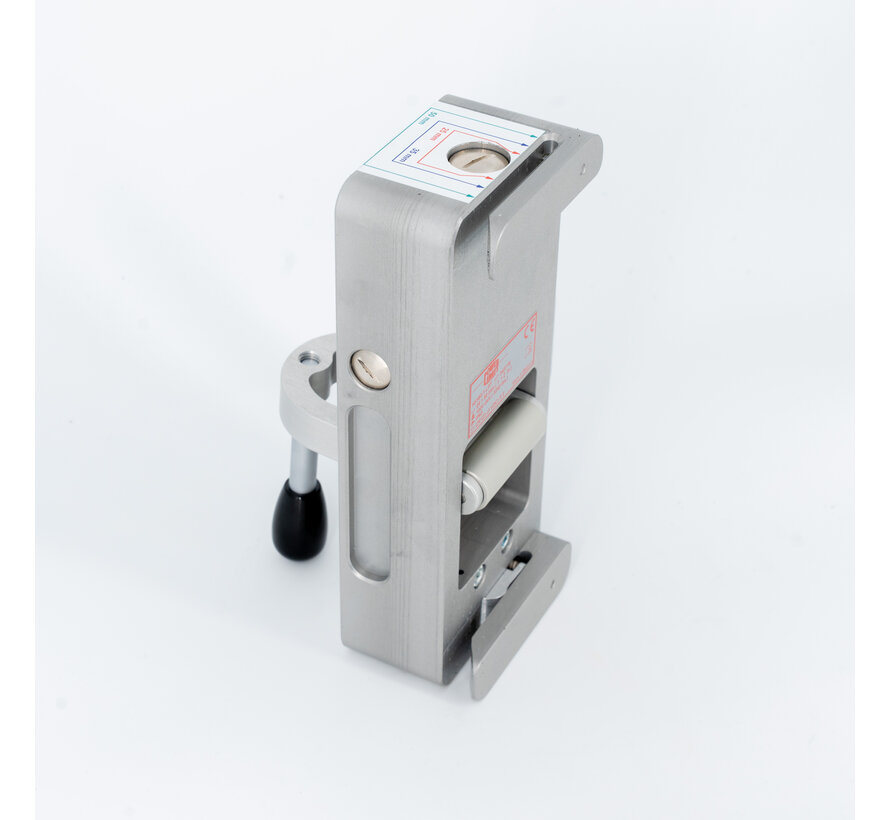

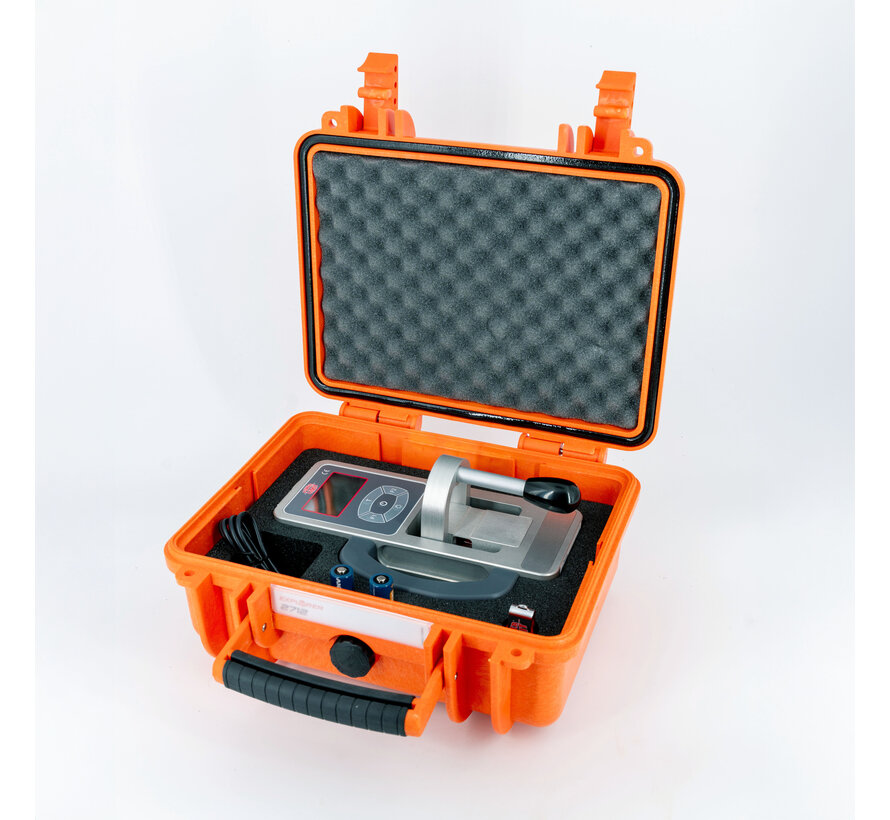

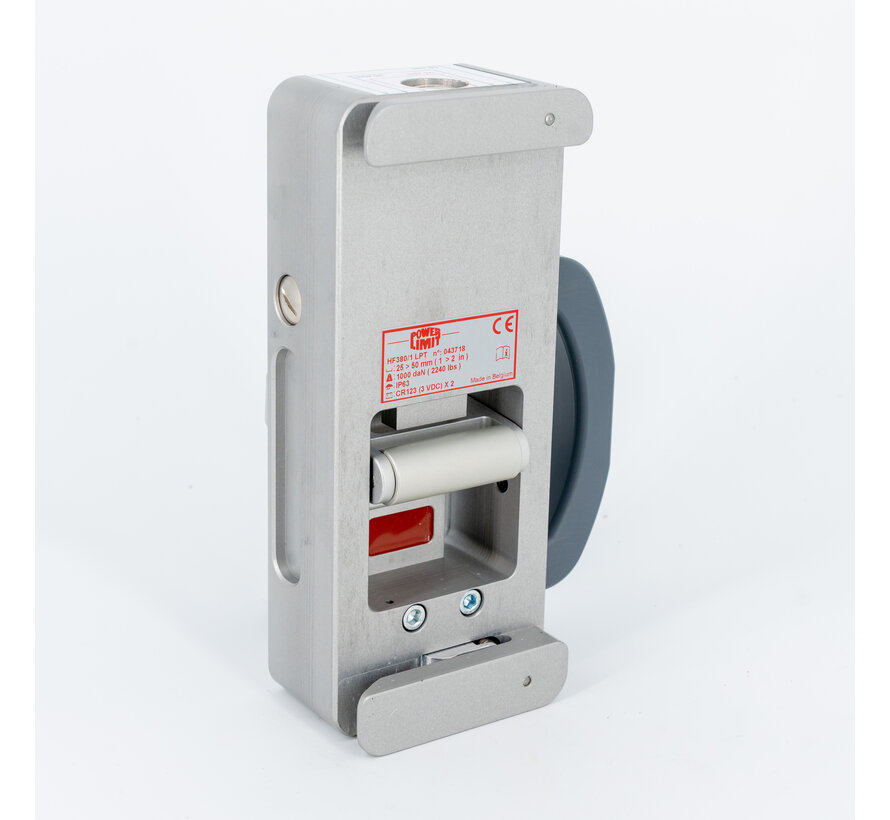

Lashing tension meter HF 380/LPT
Application field:
Digital measuring device designed to check and record lashing tension in synthetic fiber straps.
Operating principle:
The deflection of the strap through the sensor produces a tangential force proportional to the tensile load applied to the strap. The deformation produced by this force is measured by a strain gauge bridge integrated into the sensor, which also measures the strap thickness. The signal generated by the strain gauges is then processed by the associated electronics and displayed on the LCD screen.
Technical specifications:
Capacity : 1000 - 1500 daN (see below)
Sensor material : Anodized aluminum
Admissible overload : 125 %
Strap width : 25 - 75 mm (see below)
Strap thickness : 1,5 à 4 mm
Overall error : +/- 2 à 5% (depending on the strap type)
Measurement units : Kg, N, daN, kN, LBS
Power supply : 2 x CR123 (3V) batteries
Battery life : +/- 100 hours
Operating temperature : -20° to +60°
Device weight : 2.1 Kg
Protection rating : IP 62

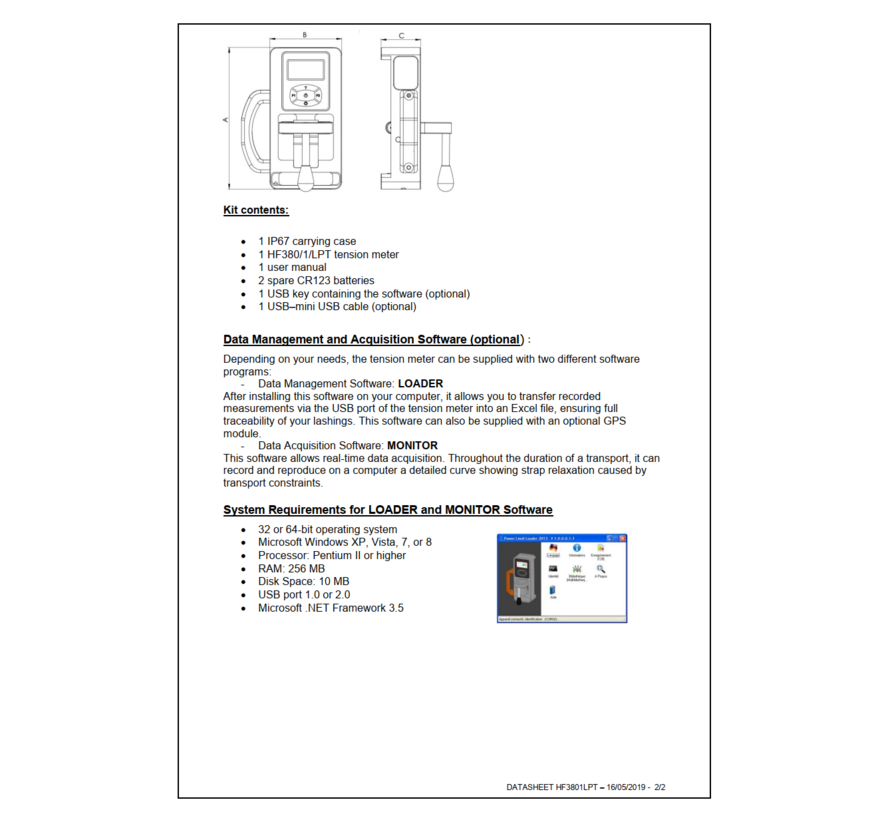

Options:
• Loader Full software (see software section)
• Monitor software (see software section)
